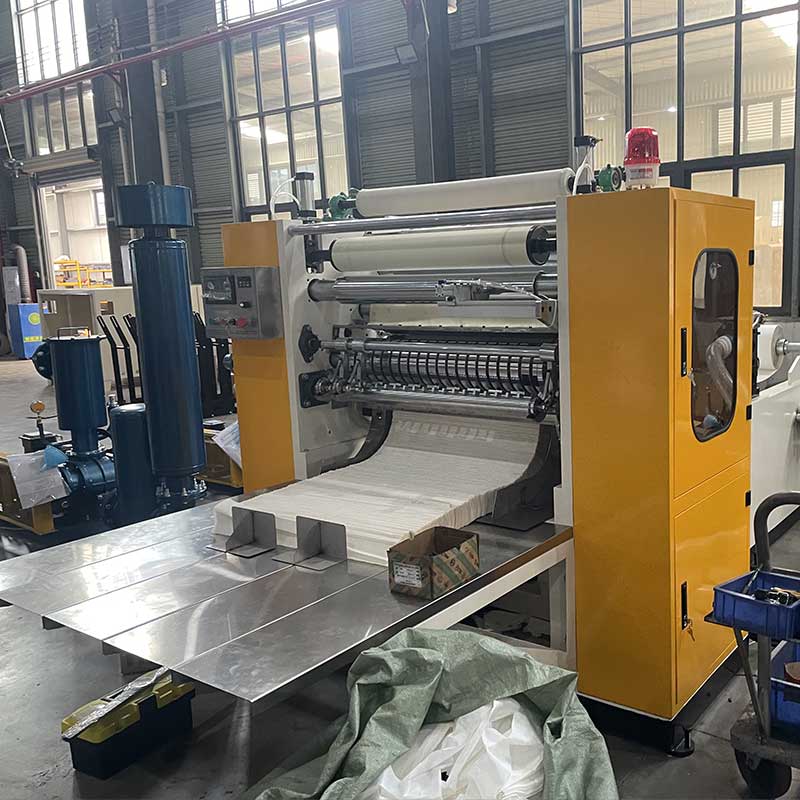

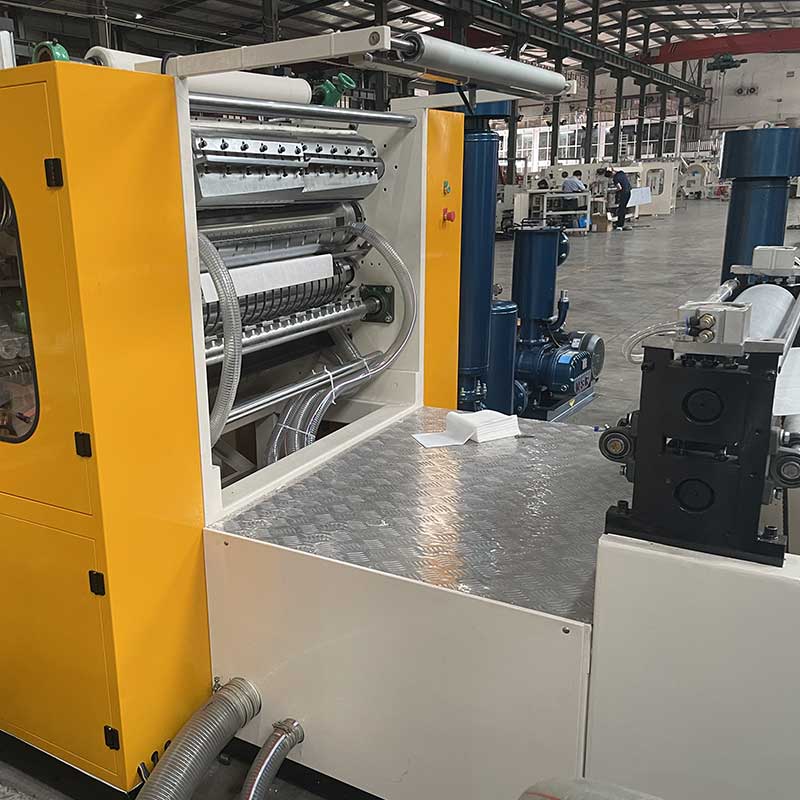

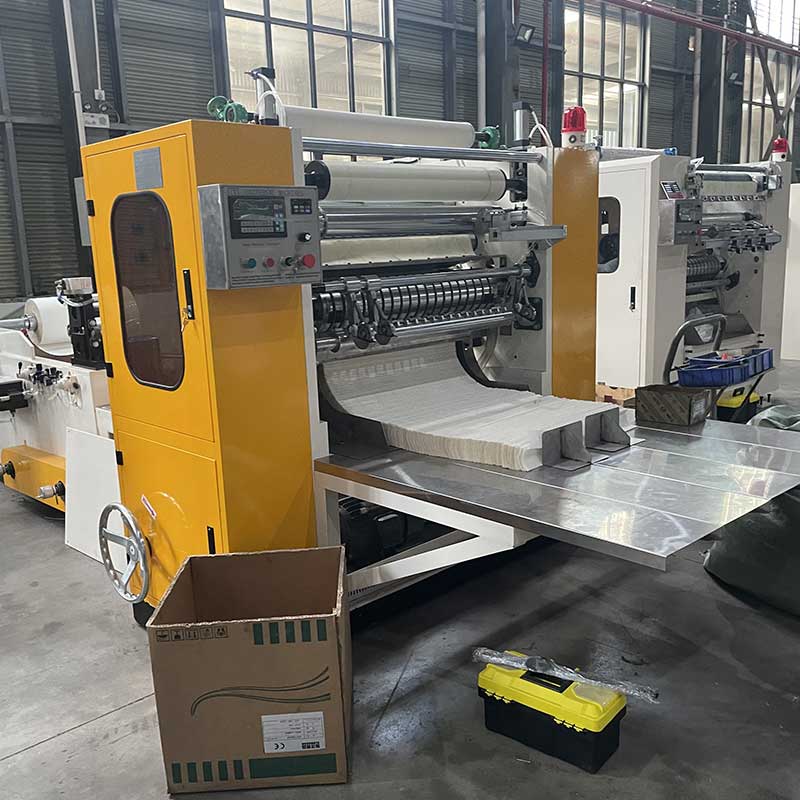

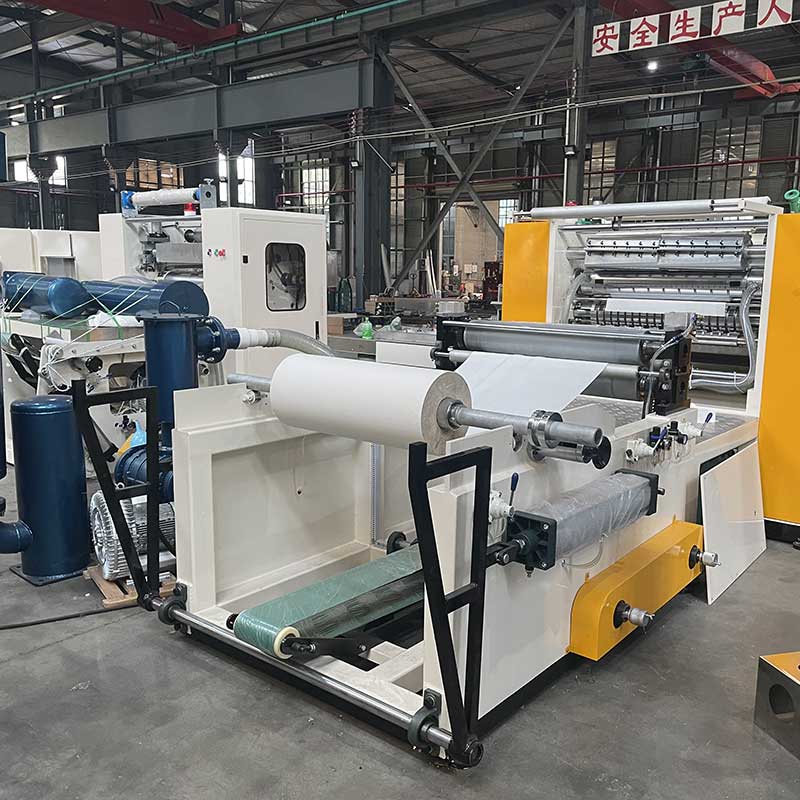

Automatic Hand Towel Paper Rewinding Machine
The Automatic Hand Towel Paper Rewinding Machine is a professional tissue converting machine designed for producing high-quality hand towel paper…
Manual Sealing Machine
brief introduction
- The Automatic Hand Towel Paper Rewinding Machine is a professional tissue converting machine designed for producing high-quality hand towel paper products. With automatic pneumatic paper loading, PLC intelligent control, precise counting system, and high-speed rewinding technology, this machine provides an efficient solution for commercial hand towel paper production.
- The machine is suitable for processing jumbo rolls of hand towel paper with different widths and weights. It can complete paper feeding, embossing, rewinding, counting, and slitting processes automatically, helping manufacturers improve production efficiency and reduce labor costs.
- With a production speed of 80-120 m/min, the machine delivers stable performance and consistent product quality for hotels, restaurants, public facilities, and paper product manufacturers.
Features
1. Automatic Pneumatic Paper Loading
The machine adopts a pneumatic raw material loading system, making jumbo roll replacement faster and easier.
Advantages:
- Reduces manual operation
- Improves loading efficiency
- Ensures stable paper feeding
- Suitable for continuous production
2. PLC Intelligent Control System
Equipped with a PLC programming control system, the machine provides accurate production management and convenient operation.
Features:
- Automatic control
- Stable running performance
- Easy parameter adjustment
- Reliable industrial operation
3. High-Speed Production
The machine provides a production speed of:
80-120 m/min
The inverter speed control system allows flexible adjustment according to different paper materials and production requirements.
4. Professional Counting System
The machine adopts dot ink counting technology for hand towel paper production.
Benefits:
- Accurate counting
- Consistent package quantity
- Improved product quality control
5. Efficient Embossing System
Optional embossing device is available according to customer requirements.
For hand towel paper:
- Steel to steel embossing
This improves paper appearance, softness, and product value.
6. Precision Slitting System
The machine is equipped with:
- Pneumatic cutter
- Hard integral bottom knife roller
Optional:
- High-speed steel bottom knife
The cutting system ensures clean edges and stable operation.
Applications
The Automatic Hand Towel Paper Rewinding Machine is widely used for producing:
- V-fold hand towels
- Commercial hand towel paper
- Hotel paper towels
- Restaurant paper products
- Public sanitary paper products
Data Sheet
| Specification | Details |
|---|---|
| Finished Product Width | 200 / 210 / 220 / 230 mm |
| Raw Material Width | 400-1800 mm |
| Maximum Raw Material Diameter | 1200 mm |
| Core Inner Diameter | 3 inch (76.2 mm) |
| Raw Material Type | Hand Towel Paper |
| Paper GSM | 30-40 g/m² |
| Control System | PLC Programming |
| Counting Method | Dot Ink Counting |
| Production Speed | 80-120 m/min |
| Speed Control | Inverter |
| Driving Mode | Timing Belt & Sprocket |
| Embossing Device | Optional Steel to Steel |
| Slitting Device | Pneumatic Cutter |
| Edge Embossing | Optional Pneumatic |

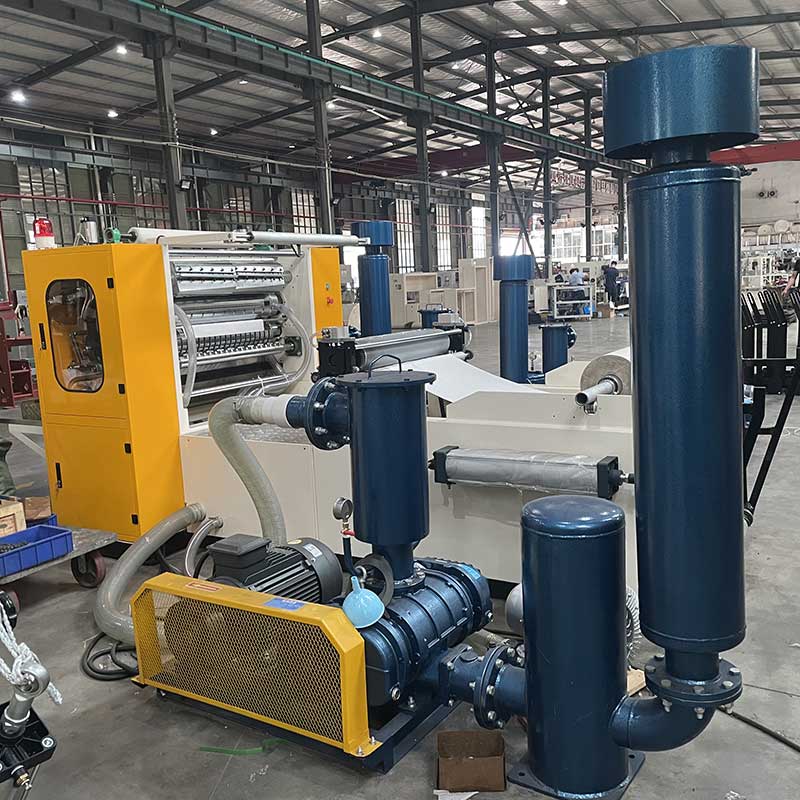

| Vacuum System | Roots Blower |
| Paper Speed Adjustment | Stepless Adjustment |
| Paper Stand | 1 Stand |
| Paper Loading Mode | Pneumatic Loading |
| Main Machine Power | 3-15 kW (380V 50Hz) |
| Blower Power | 5.5-30 kW (380V 50Hz) |
| Air Pressure Requirement | 0.6-0.8 MPa |
