brief introduction

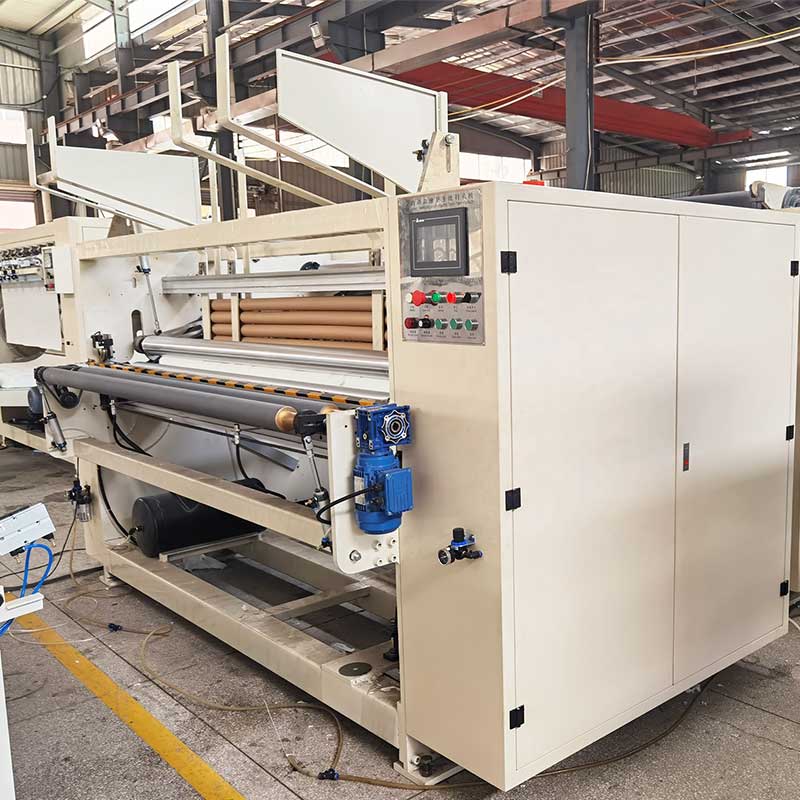

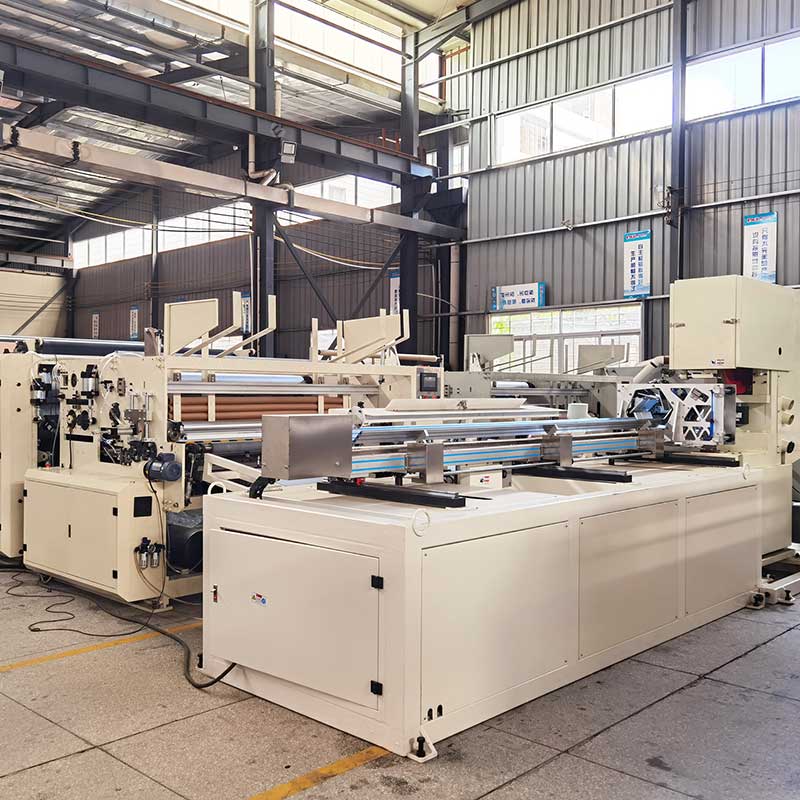

The WK-SP-C Full Automatic High Speed Color Glue Kitchen Towel Rewinding and Perforation Machine is an advanced tissue converting machine designed for producing high-quality kitchen towels, toilet tissue rolls, and laminated tissue products.
Equipped with a PLC intelligent control system, pneumatic paper loading, automatic core dropping, automatic diameter control, automatic trimming, glue spraying, and sealing functions, this machine provides a complete automatic production solution for modern tissue paper manufacturers.
With a high production speed of 180-240 m/min, the machine is suitable for large-scale production of kitchen towels and household tissue rolls. Optional functions such as color glue lamination, embossing, edge embossing, and 1-4 color printing allow customers to produce premium tissue products with customized designs.
Features
1. High-Speed Automatic Production
The machine adopts advanced automatic control technology and provides stable production speed up to:
180-240 m/min
The high-speed design greatly improves production efficiency and reduces labor costs.
Advantages:
- High output capacity
- Stable continuous operation
- Suitable for large-scale tissue production
- Reduced production cost
2. Intelligent PLC Control System
The machine is equipped with a PLC programming controller and human-machine interface (HMI).
The PLC system provides automatic control functions including:
- Automatic stop when paper breaks
- Automatic core feeding reminder
- Automatic core dropping
- Automatic roll diameter control
- Automatic edge trimming
- Automatic glue spraying
- Automatic sealing
This ensures easy operation and reliable production.
3. Color Glue Lamination System (Optional)
The optional point-to-point and color glue lamination device allows multiple layers of tissue paper to be bonded together.
Benefits:
- Improved product strength
- Better softness and appearance
- Suitable for premium kitchen towels
- Supports customized color glue designs

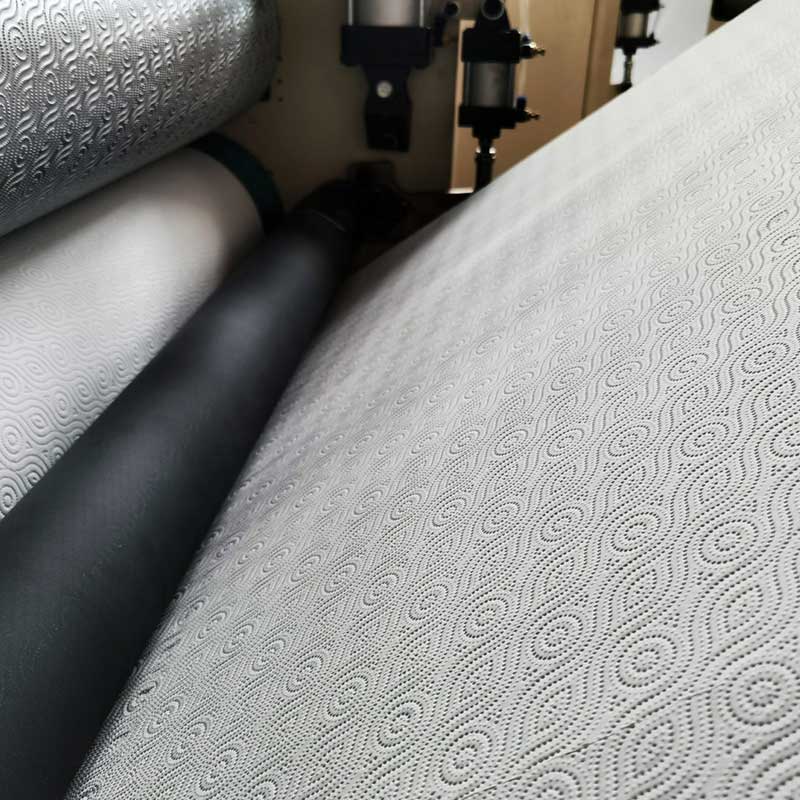

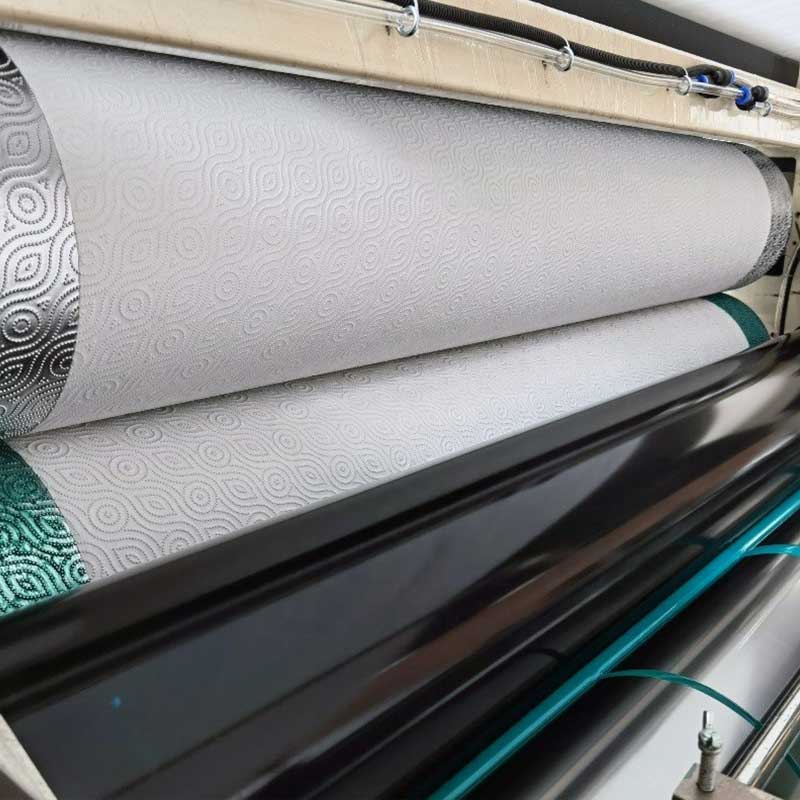

4. Advanced Embossing System (Optional)
The machine supports different embossing solutions:
- Single embossing
- Double embossing
- Steel-to-rubber embossing
Special steel-to-steel embossing structures can be customized according to customer requirements.
Embossing improves:
- Product appearance
- Softness
- Absorbency
- Market value
5. Automatic Core Pulling System
The machine supports both:
- Core roll production
- Coreless toilet tissue production (optional)
The automatic core pulling system improves production flexibility and reduces manual operation.
6. High Precision Perforation System
The machine adopts a:
High precision screw-type 4-blade perforation system
It ensures accurate perforation distance and smooth tearing performance.
Perforation options:
- 4 knives: 85-135 mm
- 2 knives: 170-260 mm
Customized perforation distances are available.
7. Automatic Pneumatic Paper Loading
The machine uses a pneumatic paper feeding system with wallboard-type unreeling stands.
Advantages:
- Faster jumbo roll replacement
- Reduced labor intensity
- Stable paper feeding
- Improved production efficiency
8. Optional Color Printing Device
The machine can be equipped with a color printing system.
Printing options:
- 1 color printing
- 2 color printing
- 3 color printing
- 4 color printing
It helps customers produce customized branded kitchen towels and tissue products.
Working Process
The complete production process includes:
- Pneumatic jumbo roll loading
- Automatic paper feeding
- Printing (optional)
- Embossing (optional)
- Glue lamination (optional)
- Rewinding
- Automatic perforation
- Core pulling / core dropping
- Trimming and sealing
- Finished roll output
Applications
The WK-SP-C machine is widely used for producing:
- Kitchen towel rolls
- Household tissue rolls
- Toilet paper rolls
- Laminated tissue products
- Commercial paper towels
Suitable industries:
- Tissue paper factories
- Paper converting plants
- Household paper manufacturers
- OEM tissue product suppliers
Technical Specifications
| Specification | Details |
|---|---|
| Model | WK-ZD-C |
| Machine Type | Full Automatic High Speed Color Glue Kitchen Towel Rewinding and Perforation Machine |
| Raw Material Width | 1200-3000 mm |
| Raw Material Diameter | 1500 mm |
| Raw Material GSM | Toilet tissue: 13-30 g/m² (1-2 layers) |
| Core Inner Diameter | 76.2 mm |
| Control System | PLC Programming + Human Machine Interface |
| Production Speed | 180-240 m/min |
| Finished Roll Diameter | 90-300 mm |
| Finished Paper Core Diameter | 30-90 mm |
| Core System | Automatic Core Pulling |
| Production Type | With Core / Coreless (Optional) |
| Perforation System | High Precision Screw Type 4-Blade Punching System |
| Perforation Distance | 4 knives: 85-135 mm / 2 knives: 170-260 mm |
| Unreeling Stand | Wallboard Type, 2 Stands |
| Paper Loading Method | Pneumatic Loading |
| Air Pressure Requirement | ＞0.6 MPa |
| Main Power | 7.5-30 kW (380V 50Hz) |
| Machine Weight | 2.8-12 Tons |
Optional Devices
| Optional Device | Function |
|---|---|
| Edge Embossing Device | Steel-to-steel embossing with air bag pressure system |
| Embossing Device | Single embossing / Double embossing |
| Glue Device | Point-to-point color glue lamination |
| Reeling Plug | Improves large diameter roll stability and edge quality |
| Color Printing Device | 1-4 color printing |
Advantages of WK-SP-C Kitchen Towel Rewinding Machine
| Advantage | Description |
|---|---|
| High-Speed Production | Maximum speed up to 240 m/min |
| Full Automatic Control | PLC system controls the complete production process |
| Flexible Configuration | Printing, embossing, and glue lamination options available |
| Premium Product Quality | Produces strong, soft, and attractive tissue products |
| Labor Saving Design | Automatic feeding, core handling, and diameter control |
