Toilet Roll Bundling Machines
Toilet Roll Bundling Machine Structure
The Toilet Roll Bundling Machine Structure adopts a compact and robust design, integrating automatic feeding, bag loading, roll arranging, sealing, and conveying systems. The well-organized structure ensures smooth operation, accurate packaging, and convenient maintenance.
With a modular design and high-quality mechanical components, this machine provides reliable performance for large-scale toilet paper production lines.
Advantages of Toilet Roll Bundling Machine Details

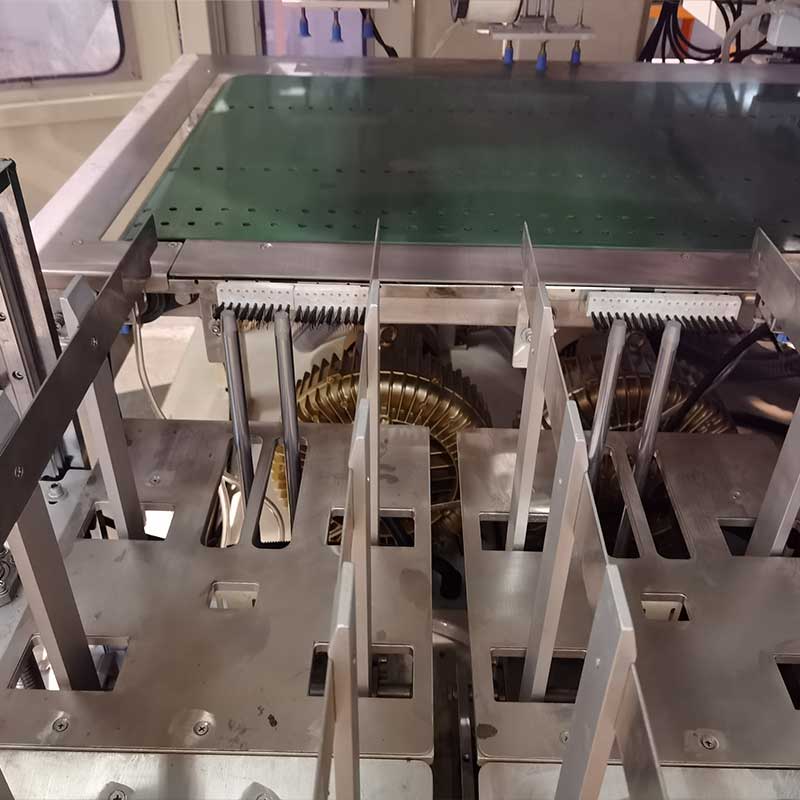

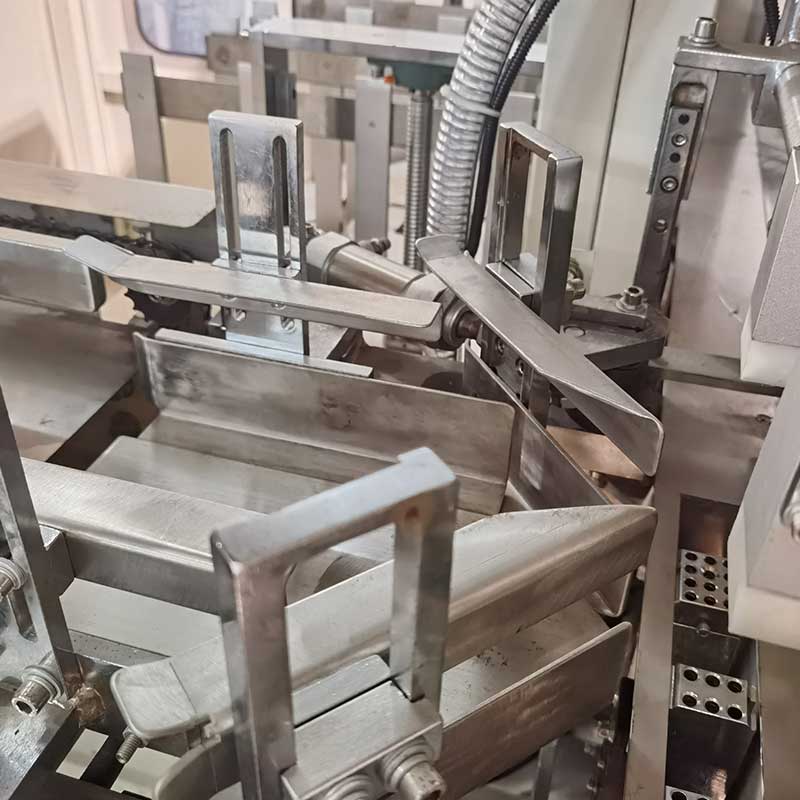

1. High-Precision Feeding System
The machine adopts an automatic feeding system with precise positioning technology, ensuring toilet rolls are arranged neatly and transferred smoothly. This helps improve packaging accuracy and maintain consistent product quality.
2. Robust Machine Structure
The bundling machine features a heavy-duty frame structure made of high-quality materials, providing excellent stability during continuous operation and extending the service life of the equipment.
3. Intelligent Control System
Equipped with an advanced PLC control system and user-friendly operation interface, the machine allows easy parameter adjustment, stable running, and efficient production management.

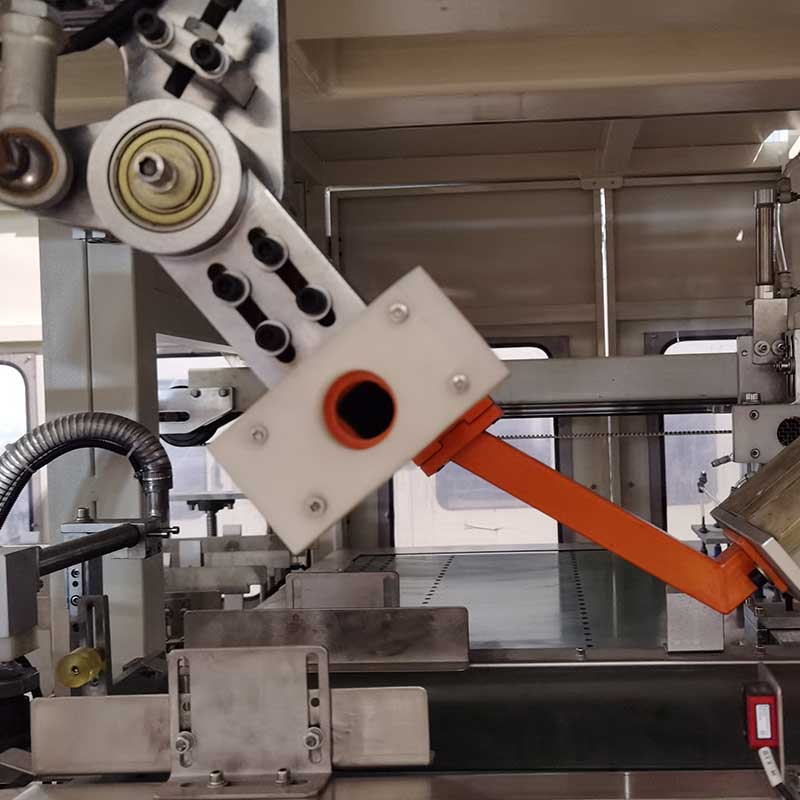

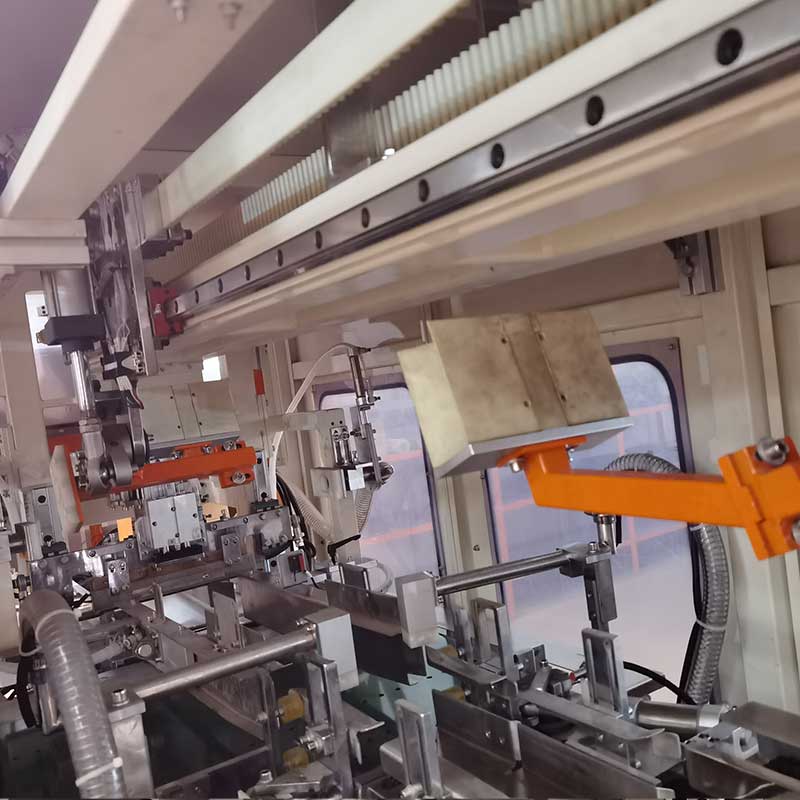

4. Efficient Packaging Components
The optimized packaging structure integrates automatic bag loading, roll arrangement, sealing, and conveying functions, enabling fast and reliable bundling with reduced manual labor.
5. Easy Maintenance Design
The machine adopts a modular structure with convenient access to key components, making maintenance and troubleshooting easier while reducing downtime and improving production efficiency.
| 机器型号 Model | WK280B |
| 包装速度 Capacity | 25提/分钟 25bundling bag/min |
| 电源电压 Power supply | 380 V三相四线 380V 50HZ |
| 气源气压(压缩空气) Air supply | 0．5-0.7 MPA（客户自备） 0.5-0.7MPA(Supplied by user) |
| 电机功率 | 9.8KW |
| 加热功率 | 1.6KW |
| 进气管直径 | 10-12mm |

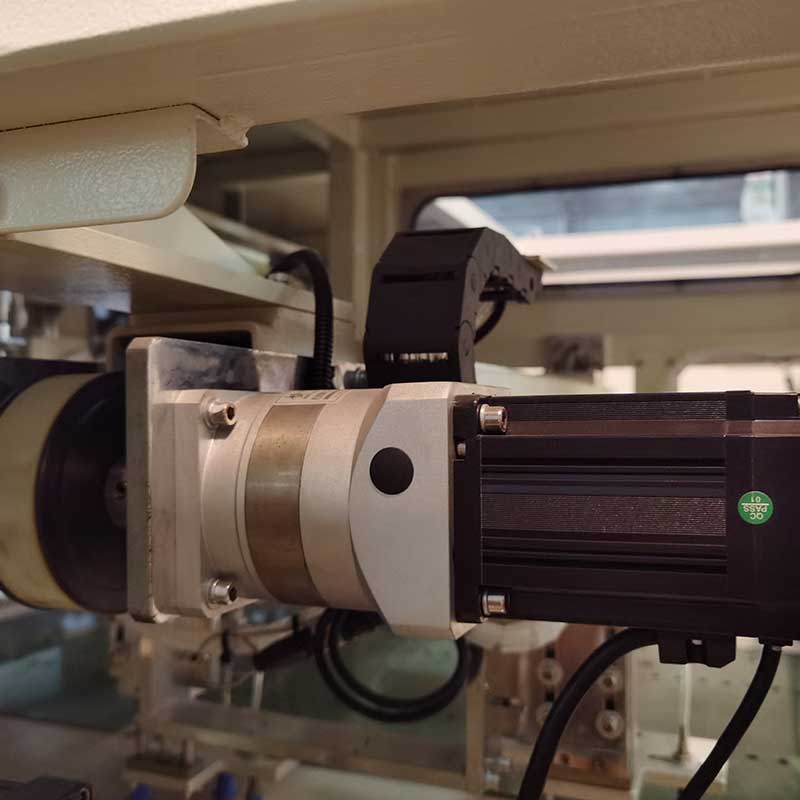

| 伺服电机 | 8个 |
| 供料方式 Feeding mode | 全自动智能供料系统 Full automatic lanes feeding system |
| 被包物适应范围 Suitable for packing | 抽纸单包 Bundling toilet rolls |
| 中包包装范围 Bag size/Rolls per bag | L450*W(130-400)*H(80-105) mm |
| 中袋包装样式 Bundling bag mode | 预制袋，预留排气孔 Prefabricated bag with air-bleed hole |
| 中袋包装膜材质Bundling bag material | PE，厚度：5S以上 PE, thickness:：≥0.05mm |
| 设备包装袋安装结构 Bundling bag store | 下拉袋式左右双袋库,提手孔位间距40mm Two bag storage |
| 袋库储存数量范围 Bundling bag storing quantity | ≤300个 ≤300 pcs |
| 整机重量 Machine weight | 2000kg |
| 机器尺寸 Machine size | L3100*W1200*H1600 mm |
